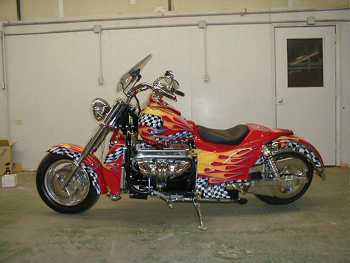

BHC-3  ZZ4  (Standard)

The ORIGINAL ...   BHC-3 ZZ4

It's been a hit from day one and there are more ZZ4's on the road than any other Boss Hoss style.  The powerful drive train includes the stone cold reliability of the 350 cubic inch GM performance engine coupled to our proprietary two speed semi-automatic transmission with a true reverse (standard on all our bike models.)  All Boss Hoss Motorcycles are fed by electronic fuel injection and electronic instrumentation provide the dash cluster with enhanced rider feedback.








BHC-3  LS3

The NEW...    BHC-3 LS3

The Boss Hoss LS3 takes our standard BHC-3 platform to a new level of handling and performance with the all-aluminum 6.3 liter Corvette power plant.  The hottest new small-block with its multi-port fuel injection system produces 445 horsepower and 445 foot-pounds torque.  Couple this with the weight shed by this all-aluminum engine and you get the strongest horsepower to weight ratio ever produced by a Boss Hoss Motorcycle.   The torque of a big block...  the agility of a sport bike... truly makes the LS3 the ultimate production motorcycle.





BHC-3   Super Sport  ZZ4

The SPORTY...    BHC-3  SUPER SPORT

The 3 inch lower seat height and a 3 inch shorter wheelbase of the Boss Hoss Super Sport have expanded the appeal of a V8 powered motorcycle to a broader range of riders.  Powered by your choice of the fuel injected ZZ4 350  (5.7L) engine that has been the cornerstone of the Boss Hoss world...  or the new all-aluminum LS3  (6.2L) monster small-block.  The ingenuity of this motorcycle design allows the Super Sport rider to sit in the bike, not just on it !!

.



ENGINE

BHC-3 ZZ4

BHC-3  LS3

BHC-3 ZZ4 SS

BHC-3 LS3  SS

Type Liquid cooled V-8 Liquid cooled V-8 Liquid cooled V-8 Liquid cooled V-8
Horsepower

355 @ 5250 rpm

445 @ 5750 rpm 355 @ 5250 rpm 445 @ 5750 rpm
       Torque 405 Ft.Lbs. @ 3500 445 Ft.Lbs. @ 4750 405 Ft.Lbs. @ 3500 445 Ft.Lbs. @ 4750
       Block Cast Iron 4-bolt Main Aluminum 6 bolt Main Cast Iron 4-bolt Main Aluminum 6 bolt Main
Cylinder Heads Aluminum (58cc) Aluminum (68cc) Aluminum (58cc) Aluminum (68cc)
      Valvetrain 1.94" Int/ 1.5" Exh 2.16" Int/ 1.59" Exh 1.94" Int/ 1.5" Exh 2.16" Int/ 1.59" Exh
      Size 350 ci  (5700cc) 350 ci  (5700cc) 350 ci  (5700cc) 350 ci  (5700cc)
Compression Ratio 10:1 10:7:1 10:1 10:7:1
Electronic Fuel Injection Holly 670 cfm TBI Multi Port Holly 670 cfm TBI Multi Port
Exhaust 2.5" with dual mufflers 2.5" with dual mufflers 2.5" with dual mufflers 2.5" with dual mufflers
Drive Train:
Transmission 2 speed semi auto 2 speed semi auto 2 speed semi auto 2 speed semi auto

Final Drive

Belt, Gates- Polychain Belt, Gates- Polychain Belt, Gates- Polychain Belt, Gates- Polychain
Dimensions:
Overall Length 106" 106" 103" 103"
Wheel Base 80" 80" 77" 77"
     Seat Height  28" 28" 25" 25"
       Rake 33 deg 33 deg 33 deg 33 deg
Ground Clearance 4.5" 4.5" 4.5" 4.5"
Frame/Body Width 28" 28" 28" 28"
GVWR 1675 lbs 1675 lbs 1675 lbs 1675 lbs
Dry Weight 1110 lbs 1065lbs 1110 lbs 1065lbs
Tires & Wheels:
Front 130/90-16, 3.50"x16" 130/90-16, 3.50"x16" 130/90-16, 3.50"x16" 130/90-16, 3.50"x16"
Rear 230/60, 7"x15" 230/60, 7"x15" 230/60, 7"x15" 230/60, 7"x15"
       Suspension:
 Front

63mm inverted forks, adj. preload, 3.5" travel

Rear

Dual 13" coilover shocks, adjusted preload

Brakes:
Front (Brembo)

Dual four-piston calipers, 12.6" floating discs

Rear ( Brembo)

Single four-piston caliper, 12.6" floating disc

Fuel:
Tank Capacity 8.5 Gal 8.5 Gal 8.5 Gal 8.5 Gal
High/low MPG 25/20 26/21 25/20 26/21
Misc:
Storage Compartment 400 cu in 400 cu in N/A N/A
       Instruments

Electronic Speedo, odometer, tripmeter, volts, water temp, oil pressure, fuel gauge

       Indicators

hi-beam, turn signals, neutral

Warranty

12 month unlimited miles
